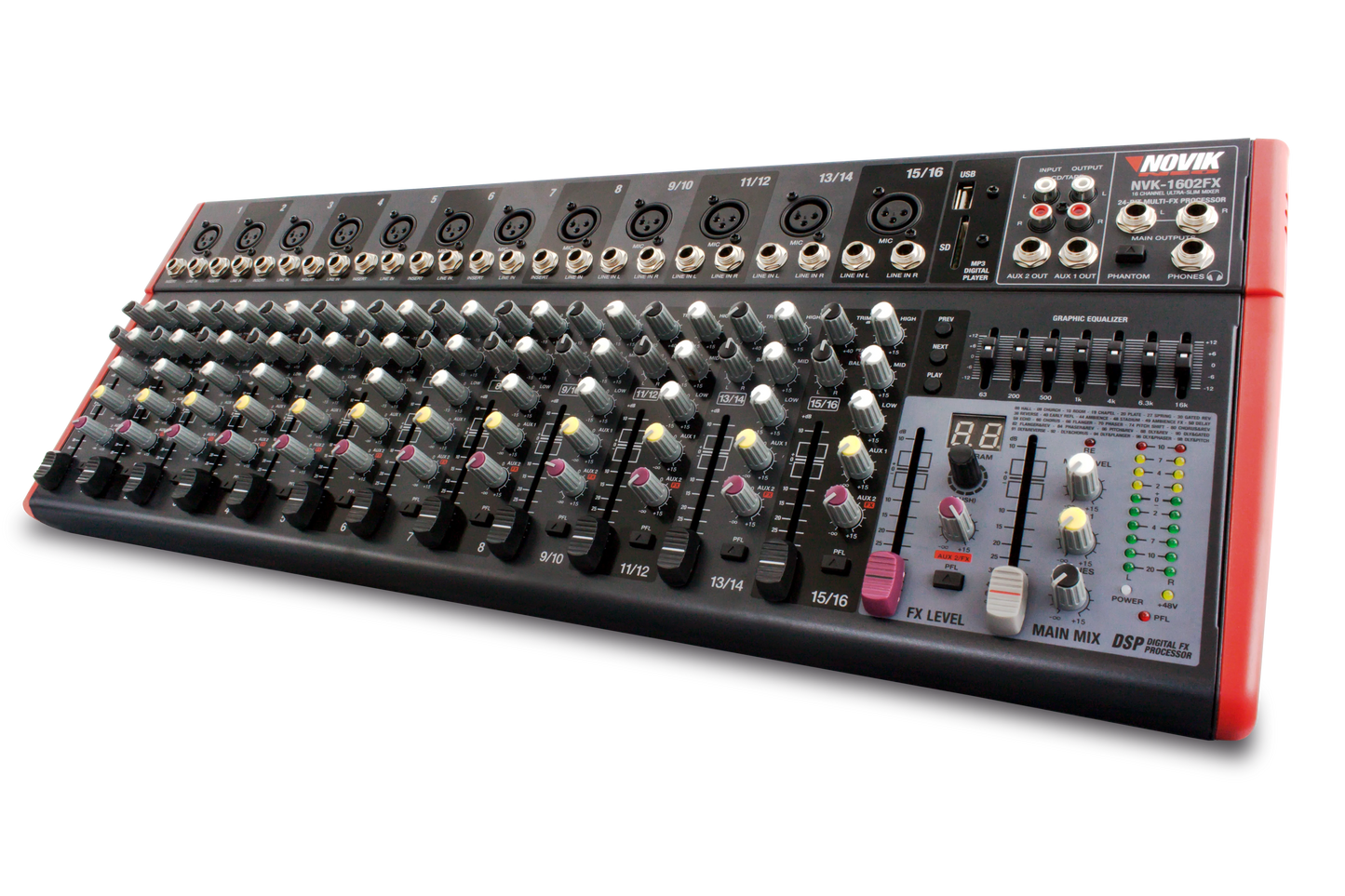

NVK 1602FX combines multiple microphone and line inputs, 24Bit multi-FX processor and USB / SD MP3 player.
Multipurpose mixer with Ultra-Slim and lightweight innovative design, enabling great convenience in operation, installation in small places and comfortable transportation.

MAIN FEATURES:
Built in MP3 player
DSP with 99 internal effects
12 channels with pre-amplifiers of Mic and Phantom Power (+48V)
4 Stereo channels
XLR and 1/4 metal Jack connector socket
8 Standard Connector 1/4 TRS type to insert
3 Bands Equalizer per channel
Graphic Equalizer of 7 bands for the Master
Compatible with USB and SD memories
Auxiliary Monitor Sending / effects (pre/post-fader)
Comfortable faders for a balanced mix
Output to monitor through earphones with PFL function
PFL Function per mix channel
Peak LEDs in all the channels

TECHNICAL SPECIFICATIONS:
Microphone Inputs: XLR type balanced
Microphone TRIM Gain Range: 25dB (50mV IN 1kHz)
Line/ Stereo Input: ¼¨ TRS type balanced/unbalanced
Line TRIM Gain Range: 20dB (700mV IN 1 kHz)
S/N Ratio: 111dB
Distortion (THD+N): 0.05% measured with weighting curve A
Frequency Response: 20Hz- 20kHz ±1.2dB
Auxiliary Output: PLUG type¼¨ TS unbalanced
Main Outputs: PLUG type¼¨ TRS balanced
Max. Main Output Level: 28dBu (stereo) / 22dBu (simple channel)
Earphone Output: PLUG type ¼¨ STEREO
Max. Earphones Output Level: 22dBu
MP3 Player
Compatible Audio Formats: MP3
DSP
Converter: 24 bit Sygma-Delta
Sample Frequency: 48 kHz
Power Supply Input:2 x 18V AC ~ 700mA
